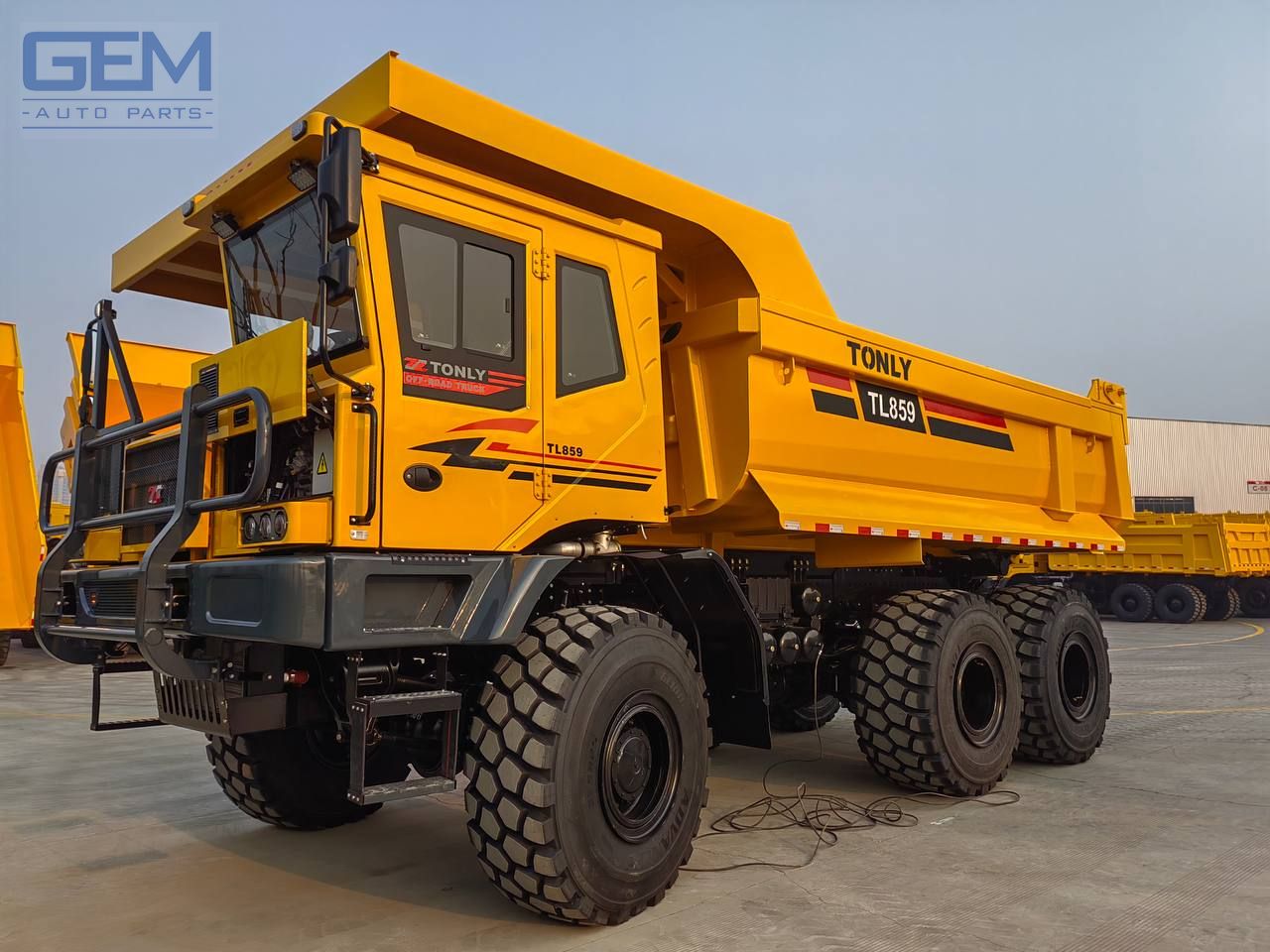

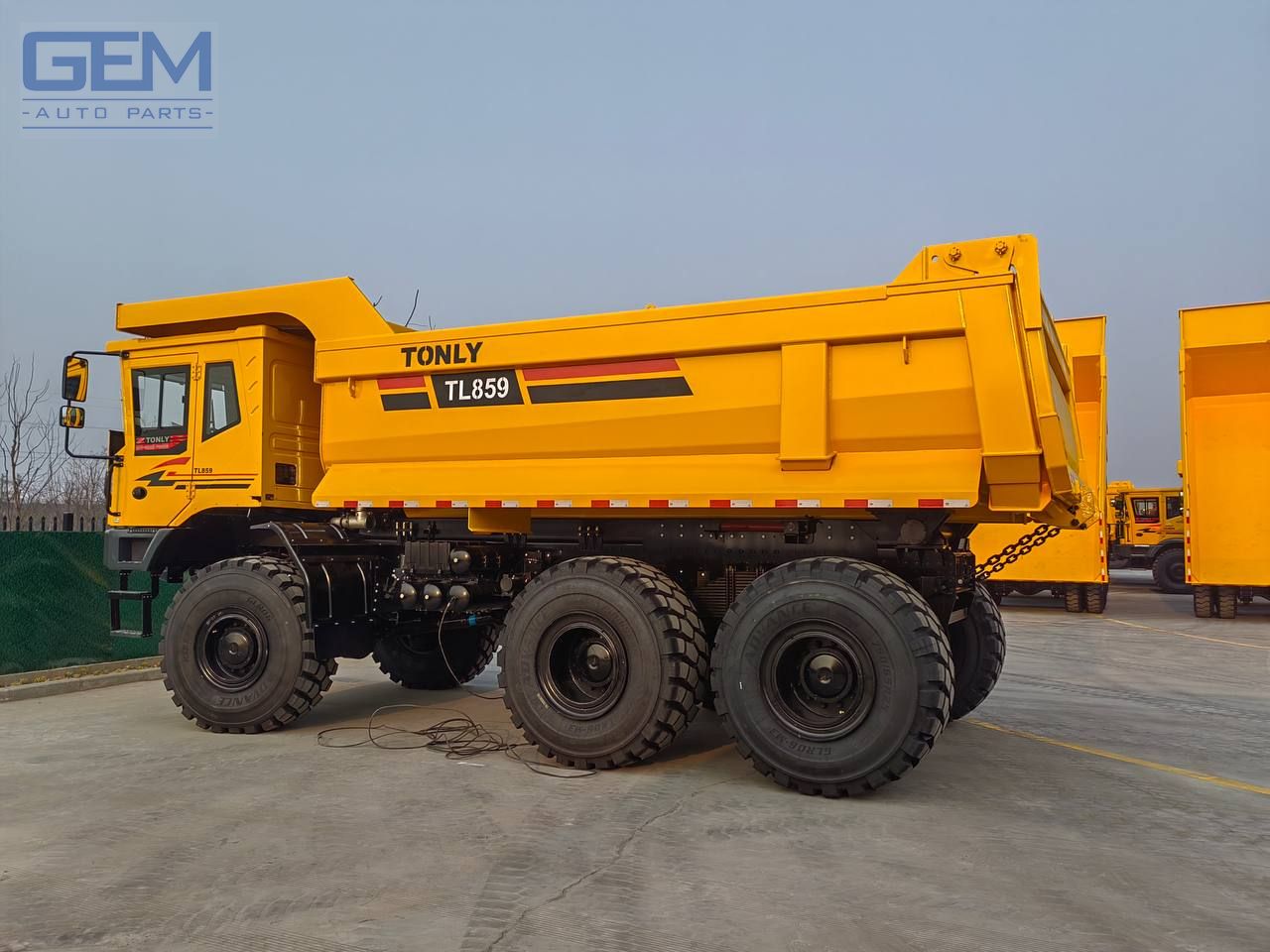

TONLY TL849 TL859 mining truck parts

Quantity:
Availability:





Inquire Add to Basket

Product Description

序号 No	件号 Part.No	Name	数量 Quan
1	4620-2205062	Link fork	2
2	4620-2205080	Gimbal assembly	2
3	4400-	Block loop	8
4	4620-2205016	Spline axes	1
5	M6GB1152	Grease cup	1
6	4635-2205020	Jacket assembly	1
7	4635-2205097	Spline hub	1
8	Φ 126x6	Axes duct	1
9	4620-2205096	Gimbal fork	1
序号 No	件号 Part.No	Name	数量 Quan
1	6204101111	Link fork	2
2	620-62160	Gimbal Assembly	2
3	362-2201-02	Block loop	8
4	6204101113	Spline axes	1
5	M6 JB/T7940.1- 1995	grease cup	1
6	395 410 04 83-B	Jacket	1
7	6201301113	Spline hub	1
8	￠ 130X5	Axes duct	1
9	6201301301	Gimbal fork	1
序号 No	件号 Part.No	Name	数量 Quan
1	84022010001	Rear axle drive shaft	1
2	Q33414T13F2	Locking nut	8
3	Q151B1450TF2	Screw	8

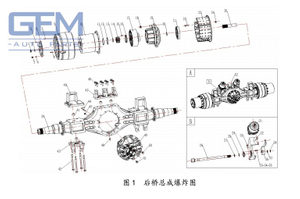

1、后桥传动轴（Rear axle drive shaft）84022010001
序号 No	件号 Part.No	Name	数量 Quan
1.1	01	Rear Propeller	1
1.2	02	Rear Propeller	1
序号 No	件号 Part.No	Name	数量 Quan
1	3570-2205062	Link fork	2
2	3570-2205080	Gimbal Assembly	2
3	19036311063～67	Block loop	8
4	3570-2205016	Spline axes	1
5	M6 GB1152	Grease cup	1
6	19036311020	Jacket	1
7	19036311197-B	Spline hub	1
8	Ф 108×7	Axes duct	1
9	3570-2205096-AH	Gimbal fork	1
序号 No	件号 Part.No	Name	数量 Quan
1	Q151C1275	Hex.screw	4
2	GB/T6185.2	Locking nut	10
3	Q151B1670	Hex.screw	4
4	Q33316	Locking nut	34
5	JB/T7940.1	Nipple	6
6	85029010078	Washer	12
7	87029010046	Bolt	4
8	85029010107	Leaf spring,right	1
9	85029010010b	Front bracket	2
10	Q151B1665	Hex.screw	8
11	Q151B1445	Hex.screw	6
12	Q33314	Locking nut	6
13	Q151B1650	Hex.screw	14
14	GB_T1230-16	Washer	6
15	Q151B1655	Hex.screw	8
16	84029010009	Cross member	1
17	85029010093	Spring shackle	2
18	85029010075	Bolt	2
19	Q151C1270	Hex.screw	2
20	84029010013	Bracket assy	2
21	85029010094A	Bracket	2
22	Q151C1240	Hex.screw	4
23	Q401B12	Spring washer	4
24	GB_T6185-2- M12× 1.5	Locking nut	2
25	85029010076	Limit plate	4
26	3400-2901002	Plate	2
27	10029010003	Screw	4
28	34029010002	Washer	8
29	Q363B20	Nut	8
30	85029010106	Leaf spring,left	1
31	8402905A001	Shock Absorb	1
序号 No	件号 Part.No	Name	数量 Quan
1	99000520078	Tub	3
2	850290100106/107-1	Spring plate1	1
3	850290100106/107-2	Spring plate2	1
4	850290100106/107-3	Spring plate3	1
5	850290100106/107-4	Spring plate4	1
6	850290100106/107-5	Spring plate5	1
7	850290100106/107-6	Spring plate6	1
8	850290100106/107-7	Spring plate7	1
1	Q151B20140	Plate	2
2	87029010076	Washer	8
3	87029010151	Ronds	2
4	Q33320	Nut	4
5	87029010152	Ronds	4
6	Q5004040	Pin	4
7	GB/T6178	Nut	4
8	3400-2905005	Fork	2
9	JB/T7940.1	Grease nipple	2
10	Q151B20110	Screw	4
11	3400-2905003	Washer	4
12	87029010078	Pin	4
序号 No	件号 Part.No	Name	数量 Quan
1	84029110020	Push rod	2
2	84029110021	b Pu h r df bracket,right	2
3	GB/T119.1	Pin	8
4	GB/T5785		0
5	84029110009	Spring base	4
6	84029110008	Slice spring assy	2
7	84029110013	Plate	4
8	84029110015	Plate	0
9	84029110016	Plate	0
10	84029110014	Plate	4
11	84029110012	Screw	8
12	Q151B1440	Hex.screw	12
13	Q40314	Spring washer	12
14	Q151B1650	Hex.screw	20
15	Q40316	Spring washer	28
16	85029110047	Screw base	4
17	85029010076	Limit plate	4
18	85029110086	Limit block	4
19	Q33316	Locking nut	16
21	84029110035	Locking nut	6
22	84029110037	Hex.screw	2
23	84029110036	Hex.screw	4
24	84029110040	Push rod assy,upper	2
25	84029110002	Push rod bracket	2
26	Q151C1245	Hex.screw	4
27	Q401B12	Washer	4
28	GB/T6185.2	Locking nut	4
29	85029110129	Stud	28
30	Q341B18	Locking nut	28
30	Q151B2060	Hex.screw	12
31	85029110128	Pin	4
32	JB/T8004.1	Nut	16
33	84029110041	Push rod assy,lower	4
34	Q33320	Locking nut	12
35	Q151B20100	Hex.screw	8
36	GB/T5785	Hex.screw	4
37	85029110110		1
38	Q151B1660	Hex.screw	24
1	84029110008-01	Spring plate1	1
2	84029110008-02	Spring plate2	1
3	84029110008-03	Spring plate3	1
4	84029110008-04	Spring plate4	1
5	84029110008-05	Spring plate5	1
6	84029110008-06	Spring plate6	1
7	84029110008-07	Spring plate7	1
8	84029110008-08	Spring plate8	1
9	84029110008-09	Spring plate9	1
10	84029110008-10	Spring plate10	1
11	84029110008-11	Spring plate11	1
12	84029110008-12	Spring plate12	1
13	84029110008-13	Spring plate13	1
14	84029110008-14	Spring plate14	1
15	84029110008-15	Spring plate15	1
16	84029110008-50	Screw	1
17	84029110008-51	Nut	2
序号 No	件号 Part.No	Name	数量 Quan
1	2919010-Q889A-	Ball joint assy	2
1.1	2919010-Q889A- 01/3	Overall ball	2
1.2	2919005-242-07A	Elastic spring	4
1.3	φ80 ⅹ φ42	Dust skeleton	2
1.4	2919010-Q889A-	Dezel	2
1.5	φ90 ⅹ φ42	Dust skeleton	2
2	2919005-D603U-	Dore coller	2
3	2919010-Q889A-	Stranght tee	2
4	84029110040-03	Connecting tipe	1
序号 No	件号 Part.No	Name	数量 Quan
1	34729110030-00	Ball joint assy	2
1.1	84029110006-	Whole sphere	2
1.2	2919005 D603U-	Spring	4
1.3	φ75× φ36	Dust cap	2
1.4	83029110007-04A	Clip reed	2
1.5	φ85 ⅹ φ36	Dust cap	2
2	83029110007-05	Check ring	2
3	84029110006-02	stand	2
4	84029110041-03	Connect pipe	1
序号 No	件号 Part.No	Name	数量 Quan
1	85029110111	Axle housing	2
2	84029110023	Axle	1
3	614130062	Seal ring	2
4	85029110114	Axle seal ring	2
5	99114520223	Axle seal ring	2
6	Q150B0810	Hex.screw	2
7	Q72308	Washer	2
8	Q61902	Spring washer	2
9	99014520042	Bearing	4
10	99014520042B	Bearing	4
11	85029110109	Cover	2
12	A 389 990 50 60	Nut	2
13	SZ84029180041	Locking Spacer	2
14	A 389 325 21 52	Spacer	2
15	Q150B0820TF2	Screw	16
16	Q40308	Oil cover	16
17	99014520191A	Bush	2
18	34029110042C	Oil seal cover	2
19	85029110113	Ring	2
20	31001750	Seal ring	2

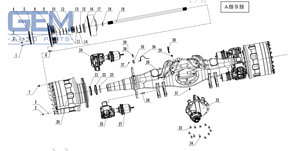

序号 No	件号 Part.No	Name	数量 Quan
1	Q184A1018TF2	Hex bolt	20
2	Q2541030	Bolt	12
3	DZ90149346027	Brake drum	2
4	160×4DIN472	Circlip for hole	2
5	HD90149426036	Stopping disk	2
6	06.29010.0426	Spring washer	2
7	HD90149346030	Planet sheft	2
8	DZ9112342041	Stopping washer	20
9	DZ9112342022	Planet gear axle	10
10	DZ91149346000	Quill roller bearing assembly	10
11	DZ9112342021	Planet gear	10
12	DZ9112346116	Hex plug	4
13	190003098026	Packing ring	4
14	DZ9112342015	End cap	2
15	DZ9112342030	Adjuster washer	0
	DZ9112342031	Adjuster washer	0
	DZ9112342032	Adjuster washer	0
	DZ9112342033	Adjuster washer	0
	DZ9112342034	Adjuster washer	0
16	81.36304.0002	Pin	2
17	DZ9112410100	Waher	2
18	HD90149426034	O style packing	2
19	HD90149426031	Centr l gear	2
20	DZ9112342025	Stopping washer	2
21	DZ90149346004	Bolt	2
22	DZ90149346002	Stopping washer	2
23	DZ9112342023	Inside gear ring	2
24	DZ9112342091	Circlip for hole	2
25	DZ90149346075	Wheel nut	24
26	H150A24133BGF2	Wheel bolt	24
27	DZ9112340227	Packing ring (left)	1
	DZ9112340228	Packing ring	1
28	HD90149346014	Sp(acie hr i)ng	2
29	DZ90149346003	Locking nut	2
30	HD90149426032	Locking nut	2
31	HD90149426033	Gear ring bearer	2
32	DZ90149346125	Row-steep roller bearing	2
33	HD90149426028	Wheel hub	2
34	32224	Row-steep roller bearing	2
35	DZ90149446001	Braker assembly	2
36	HD90149416137	Gudgeon	2
37	DZ9112340427	Quill roller bearing assembly	4
38	Q43870	Circlip for hole	4
39	190003078556	Packing ring for shaft	8
40	Q5211222	Pin	2
41	HD90149426047	Double universal joint axle（L）	1
	HD90149426048	Double universal joint axle（R）	1
42	DZ90149446010	Brake cam shaft	1
	DZ90149446011	Brake c（am）shaft	1
43	DZ9112440508	Wa（sh）er	4
44	DZ9112440517	O style packing	4
45	Q43055	Circlip ifor hole	4
46	DZ9112440510	Adjuster washer	0
	DZ9112440511	Adjuster washer	0
	DZ9112440512	Adjuster washer	0
47	HD90149446032	Cam shaft bearer	2
48	DZ9112440507	Bush	2
49	DZ9112440508	Wsher	4
50	DZ90149346041	Gap adjuster arm assembly	2
51	1.88E+11	Washer	2
52	Q43125	Circlip for axle	2
53	Q43142	Circlip for axle	2
54	HD90001500035	Hex bolt	8
55	Q150B0810	Hex bolt	2
56	1.99001E+11	protection cap	6
57	06.38070.0102	Grease nipple	2
58	Q5004025	Pin	2
59	Q40114	Washer	2
60	190003903661	Pin	2
61	108000320046	Adjuster washer	0
	108000320028	Adjuster washer	0
	108000320029	Adjuster washer	0
	108000320030	Adjuster washer	0
62	Q151B2080TF2	Hex bolt	8
63	190003963114	Taper thread grease nipple	4
64	DZ90001500003	Hex bolt	36
65	HD90149366033	Brake chamber	2
66	Q40516F6	Washer	4
67	Q341B16F6	Hex nut	4
68	HD90149446033	Chamber bearer (L)	1
	HD90149446034	Chamber bearer (R)	1
69	Q151B2065TF2	Hex bolt	8
70	HD90149416340	Steering knuckle arm	1
	HD90149416341	Steering arm	1
71	Q5211230	Pin	8
72	HD90149416138	Pin	2
73	HD90149416140	Bush	2
74	HD90149416114	Packing ring for shaft	2
75	HD90149416103	Adjuster washer	0
76	Q341B22T13F2	Hex nut	2
77	DZ90149416048	Adjusting nut	2
78	HD90149416135	Steering knuckle	1
	HD90149416136	Steerin（g ）knuckle	1
79	HD90149416102	Protec i n clip	2
80	HD90004000002	O style ring	2
81	HD90149416112	Washer	2
82	HD90149416128	Bush	2
83	HD90149416139	Pin	2
84	DZ90129436001	Steering cross rod	1
85	HD90149416131	Steering cross rod arm （L）	1
	HD90149416132	Steering cross rod arm （R）	1
86	DZ9000150002	Hex bolt	14
1	190003078556	Packing ring for shaft	8
2	Q43870	Circlip for hole	4
3	DZ9112340427	Quill roller bearing assembly	4
4	HD90149336190	Axle housing	1
5	199000330006	Vent assbelmbly	1
6	81.90310.0179	plug	1
7	Q5211232	Pin	3
8	DZ9003100000	Locking nut	12
9	Q1211645TF2	Stud	12
10	81.90310.0179	Plug	1
