The components (Rim, Lock ring, Flange, Bead seat band) together form a complete rim.
Tire size to be mounted on the rim: 33.00R51
Rim size: 51x24.00/5.0
Compatible with the chassis of the BelAZ-75135 dump truck.
Have a protection valve or diffuser valve hole.

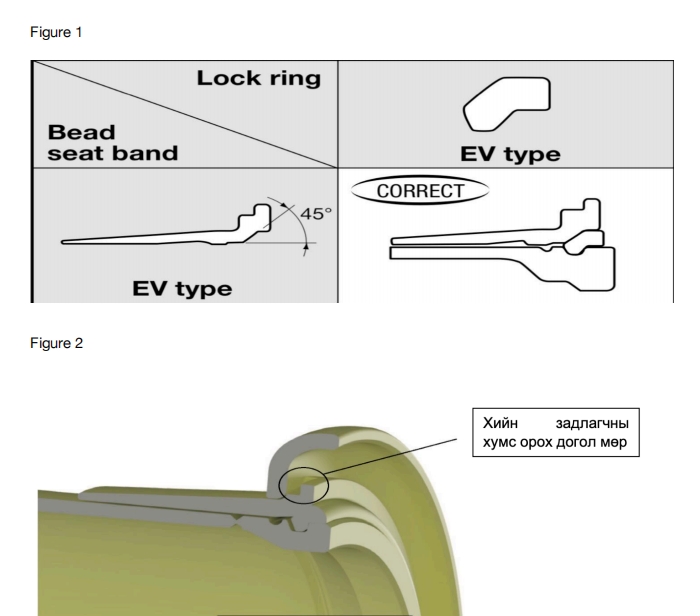

The Bead seat band and Lock ring angled at 45˚ in relation to each other. (Figure-1)
Bead Seat Band (Spacer Metal)
To be used with a 51" rim.
Have a 20mm groove to accommodate the claws of the air dismantling tool. (Figure-2)
Flange (Circular Metal)
To be used with a 51" rim.
Width more than 125mm.
Lock Ring (Locking Metal)
To be used with a 51" rim.
Must have Surelock mechanisms to prevent the Lock Ring from being ejected.

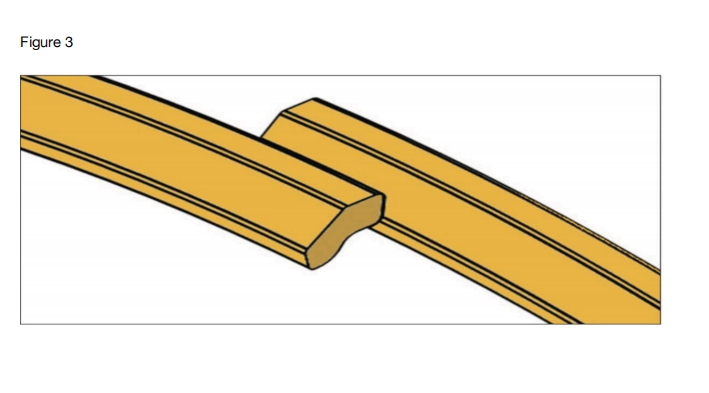

Overlap of the edge not be less than 50mm. (Figure-3)
Year of manufacture: Must be a new rim manufactured in 2025.**
