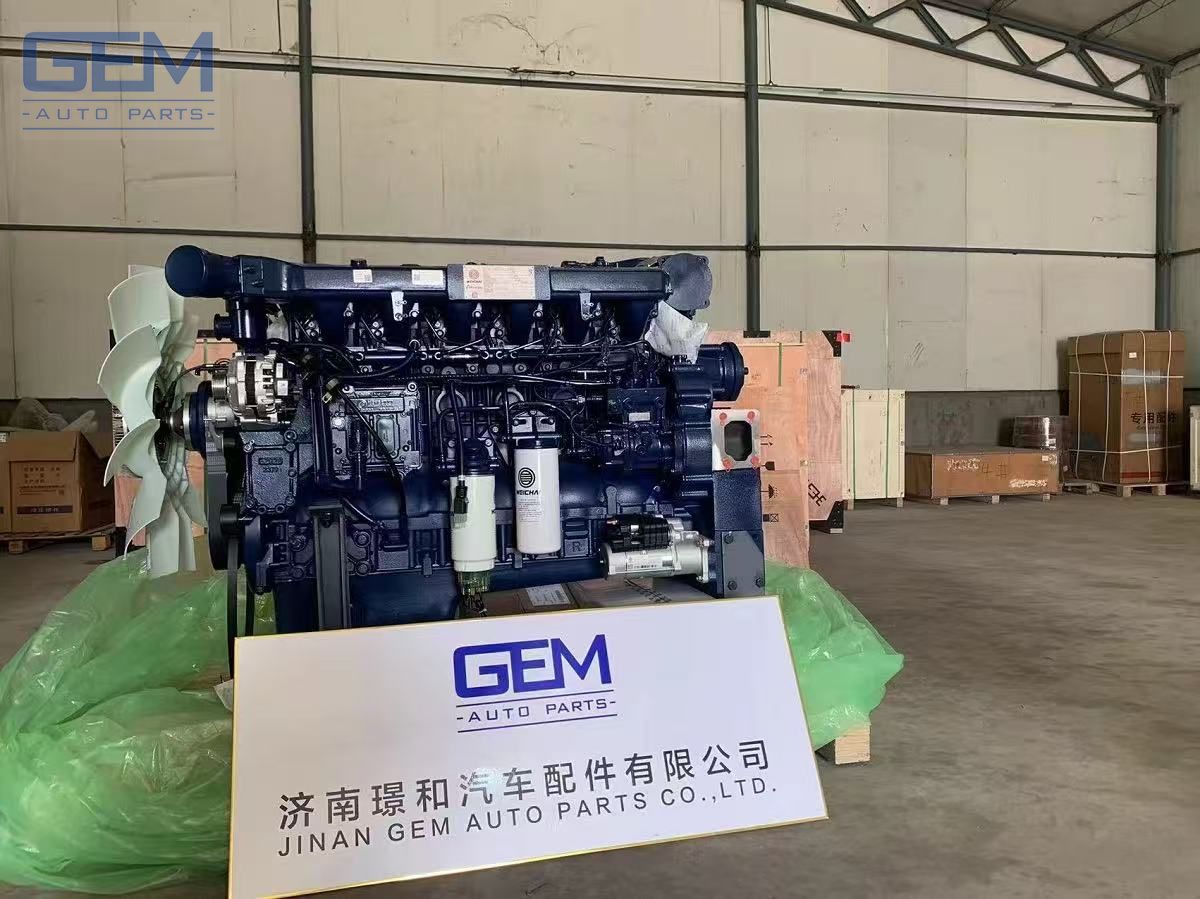

WEICHAI WP13G530E310 engine for LGMG mining truck , SANY mining truck , TONLY wide body off road truck

Weichai WP13G530E310 LGMG矿业卡车，托运矿业卡车，Sinotruk Howo off Road Truck，Senta Dumper Truck

Quantity:
Availability:





Inquire Add to Basket

Model:
WP13G530E310
Brand:
WEICHAI

Product Description

图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	1001413692	1	Pressure and Temperature Sensor
2	1001063375	1	Assembled Sealing Washer
3	612639000088	1	O-ring
4	612700010010	6	Cylinder Liner
5	1002191497	24	Hexagon Flange Bolt
6	612600160226	2	Oil Drain Plug
7	1001251569	2	Assembled Sealing Washer
8	612639000034	1	Parallel Pin
9	1003794085	1	Crankcase Assembly
10	612630010107	1	O-ring
11	612639000089	12	Parallel Pin
机体总成(Crankcase Assembly)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	1003794084	1	Crankcase Pre-assembly
2	612639000033	1	Bowl Plug
3	90003989204	2	Bowl Plug
4	612639000020	1	Pulling Rivet
5	90003962030	1	Hexagon Screw Plug
6	1006569436	1	Screw Plug
7	1001063390	1	Assembled Sealing Washer
机体预装配(Crankcase Pre-assembly)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	612600013581	11	Bowl Plug

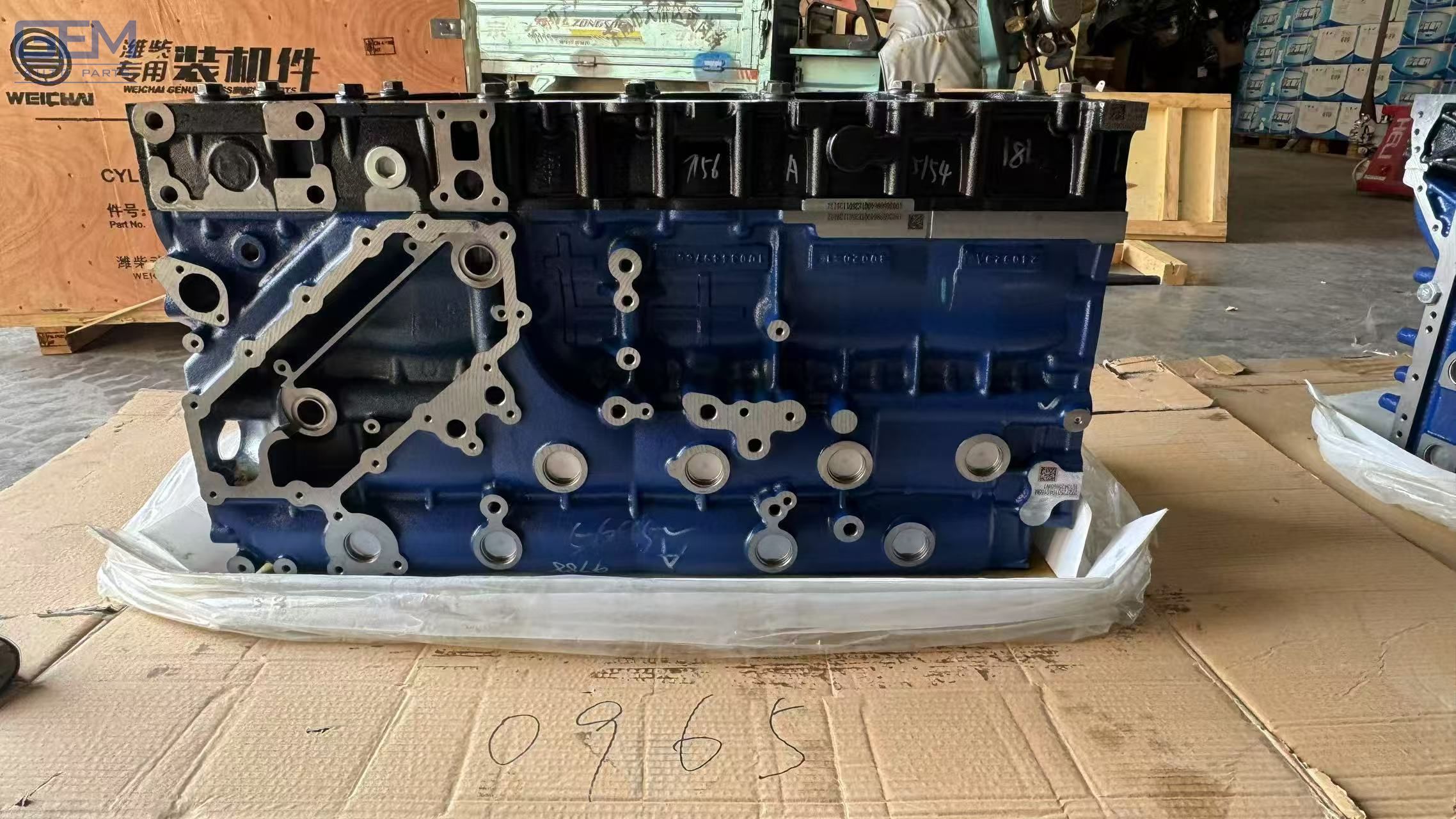

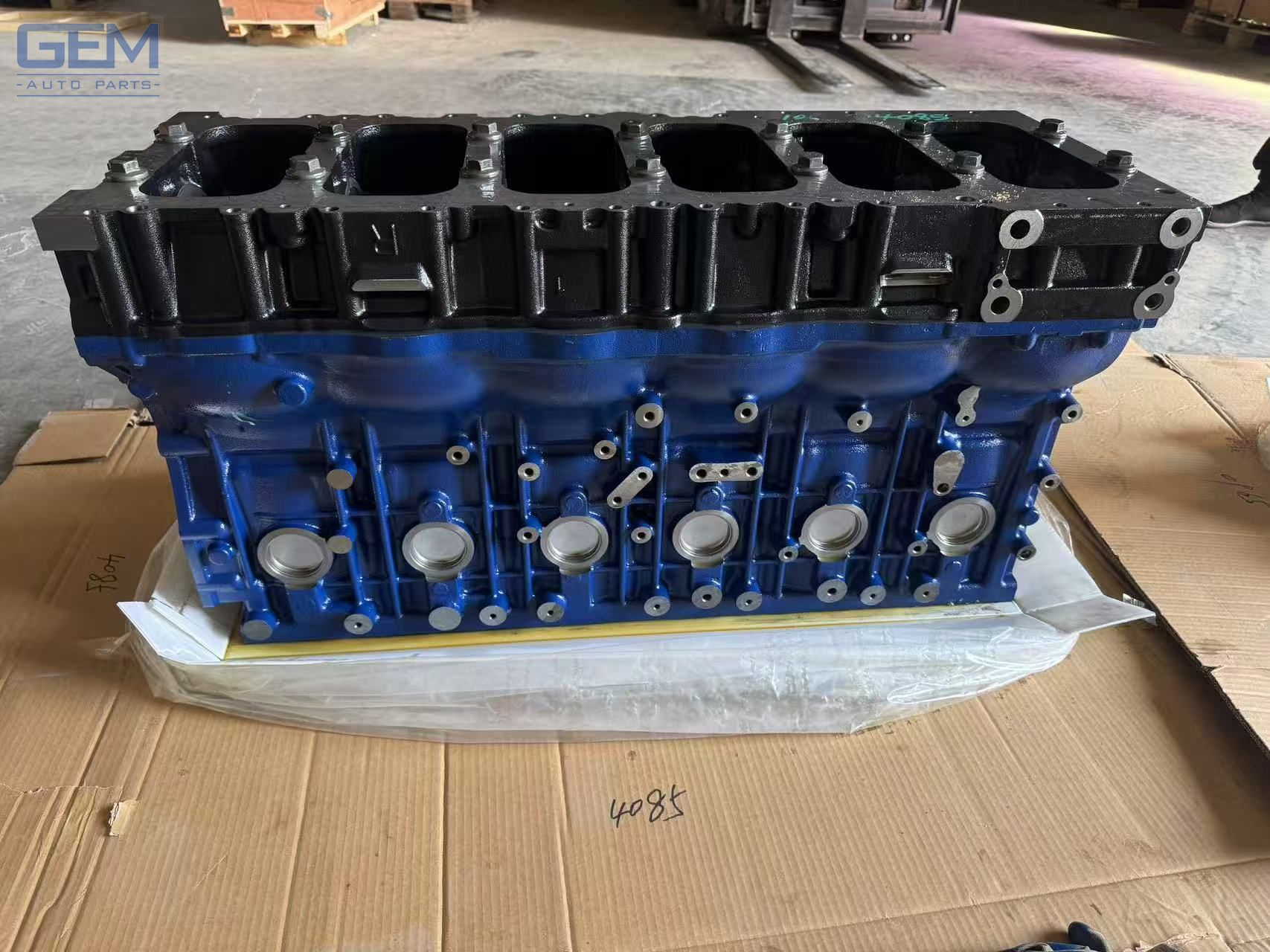

2	1013435695	1	Cylinder Block
3	1014504183	3	Main Bearing Bolt
4	1014503444	11	Main Bearing Bolt
5	1004102981	1	Crankcase
6	612639000093	3	Parallel Pin with Internal Thread
7	612630010075	1	Camshaft Bush
8	61560010029	6	Camshaft Bush
9	612600013583	6	Bowl Plug
油封结合组(Oil Seal Group)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	1001994648	1	Rear Oil Seal
2	1002052027	1	Front Oil Seal
喷嘴结合组(Spray Nozzle Group)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	1001806882	1	Piston Nozzle Assembly
飞轮壳结合组(Flywheel Housing Group)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	90003800619S	4	Hexagon Head Bolt
2	90003862427	2	Inner Hexagon Socket Head Cap Screw
3	1002269769	1	Flywheel Housing Plate
4	90003901604	1	Parallel Pin
5	1011532233	1	Flywheel Housing
6	90013050006S	1	Inner Hexagon Socket Head Cap Screw
7	612630030007	1	Speed Sensor
8	9000002168S	2	Hexagon Head Bolt
9	9000002169S	11	Hexagon Flange Bolt
10	9000000734	4	Hexagon Flange Bolt
11	612630030065	1	Handhole Cover
12	615G00010001	1	Handhole Cover
13	1400012S9001	1	Hexagon Flange Bolt
14	90003802639S	4	Hexagon Head Bolt
前端盖结合组(Front End Cover Group)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	90003901420	2	Parallel Pin
2	1001818119	1	Front Cap
3	612630010673	1	Bracket
4	612639000084S	6	Hexagon Flange Bolt
5	612639000085S	2	Hexagon Flange Bolt
6	90011400005	1	Hexagon Flange Bolt
7	90003800472	2	Hexagon Head Bolt
8	612630010672	1	Fixed support
9	90011400051	1	Hexagon Flange Bolt
曲轴结合组(Crankshaft Group)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	612630020006	1	Crankshaft Timing Gear
2	90003901418	1	Parallel Pin
3	1006463458	1	Crankshaft Assembly
曲轴总成(Crankshaft Assembly)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	1004701763	1	Crankshaft Subassembly
2	612600020311	6	Pulling Rivet
曲轴分总成(Crankshaft Subassembly)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	1004701653	1	Crankshaft
2	1001736703	1	Oil Pump Gear
主轴瓦结合组(Main Bearing Group)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	612660010031	7	Main Bearing Upper Shell
2	612660010032	7	Main Bearing Lower Shell
止推片结合组(Thrust Plate Group)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	612630010630	2	Lower Thrust Plate
2	612630010629	2	Upper Thrust Plate
飞轮结合组(Flywheel Group)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	1003500131	1	Deep Groove Ball Bearing
2	90003934310	1	Elastic collar for hole
3	1007388914	1	Flywheel
4	90003931122	12	Spring Washer
5	90003802538	12	Hexagon Head Bolt
6	1000878600	9	Flywheel Bolt
7	612630020264	1	Flywheel Ring Gear
8	90003901418	1	Parallel Pin
活塞连杆结合组(Piston and RodConnecting Group)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	1012082879	1	Piston Ring Set
2	1010186082	1	Piston
3	612630020025	1	Piston Pin
4	612630020029	2	Piston Pin Retainer
5	1001762096	1	Connecting Rod Lower Shell
6	1001762093	1	Connecting Rod Upper Shell
7	1007696672	1	Connecting Rod Assembly
活塞环组件(Piston Set)Ring
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	612700020005	1	Keystone Barrel Ring
2	612700020006	1	Twist Taper Ring
3	1003001415	1	Coil Spring Loaded Oil-control Ring
连杆总成(Connecting Rod Assembly)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	612630020345	1	Connecting Rod Bush
2	1007696669	1	Connecting Rod Body
3	1000332643	2	Connecting Rod Bolt
气缸盖结合组(Cylinder Head Group)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	61200040034	14	Cylinder Head Nut
2	1003596065S	14	Secondary Blots of Cylinder Head
3	1001643520	1	Lifting Clamp
4	1004686210	6	Cylinder Head Subassembly
5	1004220117	6	Cylinder Head Gasket
6	1000695371	10	Clamp
7	1000549569	24	Valve Stem Seal
8	1005328196	24	Cylinder Head Bolt
9	612630040010	1	Lifting Clamp
气缸盖分总成(Cylinder Head Subassembly)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	612630040026	1	Injector Bush
2	1004257065	1	Injector Bush Sealing Ring
3	612600040639	1	Bowl Plug
4	612630040181	4	Valve Guide
5	1000721714	1	Cylinder Head
6	612600040634	6	Bowl Plug
7	612600040633	2	Bowl Plug
8	1004680682	2	Exhaust Valve Seat
9	1000059542	2	Intake Valve Seat
10	612600040228	1	Pulling Rivet
11	612630040028	2	Seal Ring
12	1003405748	2	Push Rod Bush
吊环结合组(Lift Lug Group)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	614010388	1	Lifting Screw
气缸盖罩结合组(Cylinder Head Cover Group)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	612630040144	30	Hexagon Flange Bolt
2	1001167541	1	Cylinder Head Cover Assembly
3	612630040007	6	Cylinder Head Cover Gasket
4	612630040005	5	Cylinder Head Cover
气缸盖罩总成(Cylinder Head Cover Assembly)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	1004020407	1	Oil Filler Cover Assembly
2	1001073780	1	Cylinder Head Cover
WP13系列发动机零件图册
加油口盖总成(Oil Filler Cover Assembly)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	1000101895	1	Seal Ring
2	1004020402	1	Oil Filler Cap
油气分离器结合组(Oil-gas Separator Group)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	90011400019	2	Hexagon Flange Bolt
2	1000365412	1	Oil-gas Separator Bracket
3	612630060015	1	Oil-gas Separator
4	90003871252	2	Hexagon Nut
5	90011400020	2	Hexagon Flange Bolt
6	90003989300	4	Clamp
7	612630061000	1	Oil Connecting Rubber Pipe
8	1002490974	1	Oil-gas Separator Oil-return Pipe
9	1001429877	1	Gasket
10	612630040310	1	Pre-separator Oil-return Pipe
11	9000000723	2	Hexagon Flange Bolt
12	612630060756	1	Oil Connecting Rubber Pipe
13	90003802402	1	Hexagon Head Bolt
14	612630060591	1	Pipe Clamp
15	612630060652	1	Oil Connecting Rubber Pipe
16	90003989301	5	Clamp
17	612630060761	1	Air Connecting Rubber Pipe
18	612630060758	1	Oil-gas Pre-separator
19	612630060017	1	Oil Connecting Rubber Pipe
油气分离器(Oil-gas Separator)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	612630060620	1	Oil-gas Separator Shell Assembly
2	612630060138	1	Oil-gas Separator Element
配气机构结合组(Valve Train Group)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	612630050147	6	EVB Bracket Assembly
2	1000881645	12	Rocker Arm Set
3	612630050015	48	Valve Collet
4	612630050014	24	Valve Spring Top Retainer
5	612630050005	24	Valve Spring
6	90003802443S	2	Hexagon Head Bolt
7	1002856582	12	Exhaust Valve
8	1001155303	1	Camshaft Assembly
9	612630050100	12	Tappet
10	1001458375	12	Push Rod
11	1001377941	12	Intake Valve
12	1001243202	6	Valve Bridge
13	612630050013	6	Rocker Arm Bracket Assembly
14	1000495068	6	EVB Valve Bridge Assembly
15	612639000087	30	Parallel Pin
16	612630050018	6	Rocker Arm Shaft Set
17	1000271249	12	Hexagon Head Bolt
18	612630050011	6	Adjusting Screw
19	612630050012	6	Adjusting Nut
20	612630030002	1	Camshaft Thrust Plate
摇臂轴组件(Rocker Arm Shaft Set)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	612630050030	1	Rocker Arm Shaft
2	612639000065S	2	Screw
EVB (EVB Bracket支架总成 Assembly)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	612639000066	1	Bolt
2	612630040052	1	Harness Bracket
3	612639000087	1	Parallel Pin
4	612630050010	1	EVB Bracket
摇臂组件(Rocker Arm Set)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	1000137287	1	Lock nut
2	1000495390	1	Rocker Arm Assembly
3	1000878258	1	Adjusting Screw
凸轮轴总成(Camshaft Assembly)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	612639000061	1	Parallel Pin
2	1001155304	1	Camshaft
齿轮传动结合组(Gear Drive Group)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	612630030112	1	Baffle Board
2	612700030015	1	Idler Gear Assembly
3	612630030126	1	Thrust Plate
4	612630030125	1	Idler Gear Shaft
5	612639000025S	3	Hexagon Head Bolt
6	1350076S9001	3	Hexagon Head Bolt
7	612700030002	1	Camshaft Timing Gear
中间齿轮总成(Idler Gear Assembly)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	612700030012	1	Idler Gear Set
2	612630030018	1	Gear Bush
中间齿轮组件(Idler Gear Set)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	612700030014	1	Big Idler Gear
2	612700030013	1	Small Idler Gear
3	90015200021	1	Parallel Pin
动力输出结合组(Power Take-off Group)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	1004516838	1	Bolt
2	612630170031	1	Gear Oil Pipe Assembly
3	1000994455	1	Bolt
4	1005108861	1	PTO Assembly
5	1001063336	4	Assembled Sealing Washer
6	9000000040	4	Double End Stud
7	90012290003	4	Hexagon Flange Nut
后取力总成(PTO Assembly)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	90013550010	2	Inner Hexagon Socket Head Cap Screw
2	612630170047	1	Cover
3	90013050002	6	Inner Hexagon Socket Head Cap Screw
4	1005096183	1	Flange
5	1005108810	1	Gasket
6	1002263862	1	Nut
7	612600170052	1	Oil Seal
8	1002252920	1	Plastic Insert
9	90016020019	1	Deep Groove Ball Bearing
10	90014680003	1	Circlip for Hole
11	610800170011	2	Screw Plug
12	1005096115	1	Housing
13	1002258458	1	Ring
14	612630030022	1	O-ring
15	90016040014	1	Cylindrical Roller Bearing
16	90014680002	1	Circlip for Hole
17	612630170051	1	PTO Gear Shaft
曲轴皮带轮结合组(Crankshaft Pulley Group)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	1009152515	1	Torsional Vibration Dampers
2	1001643078	1	Crankshaft Pulley
3	612630020009	6	Hexagon Flange Bolt
4	612630020362	6	Hexagon Flange Bolt
油底壳结合组(Oil Pan Group)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	1001799606	1	Oil Pan Sealing Gasket
2	1002520796	1	Oil Pan Assembly
3	614150046	10	Retainer of Oil Pan
4	90011400039	10	Hexagon Flange Bolt
5	90011400058	4	Hexagon Flange Bolt
6	612630010675	1	Retainer of Oil Pan
7	612630010674	1	Retainer of Oil Pan
油标尺结合组(Oil Dipstick Group)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	1003810611	1	Dipstick Assembly
2	612600010447	2	Pipe Clamp
3	612600010446	2	Rubber Hoop
4	1003085310	1	Dipstick Pipe Below Set
机油泵结合组(Oil Pump Group)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	90011420011S	3	Hexagon Flange Bolt
2	1001862862	1	Two-stage Oil Pump
3	612639000019	1	O-ring
4	612639000013	2	Parallel Pin
机油集滤器结合组(Oil Strainer Group)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	612600070481	1	Oil Suction Strainer Gasket
2	612600070534	1	Oil Suction Strainer Flange
3	1001864004	1	Lube Oil Pump Oil-inlet Pipe
4	612630040028	1	Seal Ring
5	9000000048	2	Hexagon Flange Bolt
6	9000000044S	4	Hexagon Flange Bolt
7	1001865636	1	Lubricating Oil Suction Strainer
8	612600070355	1	Gasket
机油冷却器结合组(Oil Cooler Group)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	612630010107	2	O-ring
2	612700010021	1	Oil Cooler Assembly
3	90003802411S	4	Hexagon Head Bolt
机油冷却器盖结合组(Oil Cooler Cap Group)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	612639000073	10	Hexagon Head Bolt
2	1003285150	1	Oil Cooler Cap Assembly
3	1002864964	1	Oil Cooler Cap Gasket
4	1001251573	1	Assembled Sealing Washer
5	1001675571	1	Hexagon Screw Plug
6	90003932023	4	Wave Spring Washer
7	1000181085	2	Back-up Block
8	612600013554	1	Back-up Block
9	1001689904	1	Back-up Block
10	90012290001	1	Hexagon Flange Nut
机油冷却器盖总成(Oil Cooler Cap Assembly)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	1003285103	1	Oil Cooler Cap
2	612630010052	1	Valve Body
3	612630010081	1	Return Spring
4	612639000069	1	Washer
5	612639000044	1	Screw Plug
机油滤清器结合组(Oil Filter Group)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	612639000078S	4	Hexagon Head Bolt
2	1001786462	1	Oil Filter
3	612630010660	1	Oil Filter Base Gasket
机油滤清器(Oil Filter)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	1001786317	1	Oil Filter Seat
2	1000428205	2	Oil Filter Element
加机油管结合组(Oil Filling Pipe Group)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	1002238165	1	Oil Filler Cap
2	90014420005	1	Assembled Sealing Washer
3	9000000328	4	Hexagon Flange Bolt
4	1000649752	1	Cover
5	612600013956	1	Gasket
缓速器取水管结合组(Retarder Water-inlet Pipe Group)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	1001703369	1	Gasket
2	612600050042	1	Sealing Washer
3	90003962019	1	Hexagon Screw Plug
4	1000356916	1	Water Pipe Assembly
5	612600080200	1	Washer
6	90003962020	1	Hexagon Screw Plug
7	612630010386	1	Pipe Clamp
8	90011400028	3	Hexagon Flange Bolt
水泵结合组(Water Pump Group)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	1000585366	1	Gasket
2	612630060035	1	Temperature Sensor
3	612600080200	1	Washer
4	90003962020	1	Hexagon Screw Plug
5	90011420024	4	Hexagon Flange Bolt
6	1001544710	1	Water Pump
7	612639000100	4	Hexagon Head Bolt
8	90011350024	1	Hexagon Head Bolt
9	612630060154	1	Thermostat Cover
WP13系列发动机零件图册
水泵进水管接头结合组(Water Inlet JointPumpPipe Group)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	612630060034	1	Water Pipe Connector
2	612630060467	2	Plug
3	1000595272	1	Water Pipe Connector
4	612630060161	1	Conversion Adapter
放气管结合组(Venting Pipe Group)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	612630040128	1	Venting Pipe Assembly
2	1001063336	12	Assembled Sealing Washer
3	1001423223	6	Bolt
节温器结合组(Thermostat Group)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	612630060067	2	Seal Ring
2	1001421004	2	Thermostat
风扇托架结合组(Fan Bracket Group)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	1001554862	1	Fan Bracket Assembly
2	9000000704	4	Hexagon Flange Bolt
3	612630060093	1	Fan Flange
4	90003931102	6	Spring Washer
5	90003802424	6	Hexagon Head Bolt
6	90011420036	2	Hexagon Flange Bolt
7	1003386837	1	Harness Bracket
风扇及轮毂结合组(Fan and Hub Group)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	90011400058	6	Hexagon Flange Bolt
2	1005322722	1	Fan Clutch
3	1006082090	1	Fan
4	9000000068	2	Hexagon Flange Bolt
喷油泵结合组(Fuel Injection Pump Group)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	1420002S9001	2	Hexagon Flange Bolt
2	90011420011S	2	Hexagon Flange Bolt
3	90012290007	4	Hexagon Flange Nut
4	1000391990M	1	Inner Hexagon Socket Head Cap Screw
5	9000001839S	4	Double End Stud
6	1007203440	1	Fuel Injection Pump Assembly
7	1001136253	1	Fuel Injection Pump Flange
8	612700030004	1	Fuel Injection Pump Gear
9	612700030010	1	Seal Ring
喷油泵总成(Fuel Injection Pump Assembly)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	612600081583	1	Metering Unit
2	612600081584	1	Overflow Valve
3	612630030007	1	Speed Sensor
喷油泵润滑油管结合组(Fuel OilInjectionPump Pipe Group)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	612630030311	1	Fuel Injection Pump Oil Pipe Assembly
2	1001063336	3	Assembled Sealing Washer
3	612639000047	1	Bolt
喷油器结合组(Fuel Injector Group)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	90011350017	1	Hexagon Head Bolt
2	612639000016	1	Washer with Ball Face
3	612630090002	1	Fuel Injector Clamp
4	612630090012	1	Fuel Injector
5	612630090004	1	High-pressure Connector
6	612630090006	1	Nut
喷油器(Fuel Injector)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	612630090021	1	Nozzle Holder
2	612630090007	1	O-ring
3	1000272404	1	Fuel Injector Gasket
4	612630090017	1	Nozzle
高压接头(High-pressure Connector)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	612630090014	1	O-ring
2	612630090013	1	High-pressure Connector
低压油管结合组(Low Pressure Fuel Pipe Group)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	612639000047	6	Bolt
2	13057039	12	Assembled Sealing Washer
3	612630080026	1	Fuel Return Pipe Assembly
4	612639000049	6	Bolt
5	13023361	16	Assembled Sealing Washer
6	1001771495	1	Fuel-inlet Pipe Assembly
7	1001771497	1	Fuel-inlet Pipe Assembly
8	612600080948	2	Pipe Clamp Assembly
9	1001771552	1	Fuel-inlet Pipe Assembly
10	612600080949	2	Pipe Clamp Assembly
11	612639000108	1	Bolt
12	13023360	2	Assembled Sealing Washer
13	612600081010	1	Pipe Joint
14	612600081496	1	Bolt
燃油滤清器结合组(Fuel Filter Group)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	612630080010	1	Fuel Filter Bracket
2	612639000052	3	Hexagon Head Bolt
3	9000000327	2	Hexagon Flange Bolt
4	1000053432	1	Fuel Fine Filter
5	612639000090	2	Hexagon Head Bolt
6	90003871308	2	Hexagon Nut
7	1000278508	1	Fuel Coarse Filter
8	1006595778	1	Back-up Block
9	1006727520	2	Back-up Block
10	1001770725	3	Pad
11	90003811531	1	Double End Stud
燃油精滤器(Fuel Fine Filter)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	612630080554	1	Fuel Filter Seat
2	1000053555	1	Fuel Fine Filter Element
燃油粗滤器(Fuel Coarse Filter)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	612630080371	1	Fuel Filter Seat
2	1000053557	1	Fuel Coarse Filter Element
3	612630080373	1	Water Cup Assembly
高压油管结合组(High Pressure Fuel Pipe Group)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	1000264696	1	High-pressure Fuel Pipe Assembly
高压油管总成(High-pressure Fuel Pipe Assembly)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	1000101611	3	High-pressure Fuel Pipe Assembly
2	1000101614	3	High-pressure Fuel Pipe Assembly
3	1000264695	1	High-pressure Fuel Pipe Assembly
高压油管总成(High-pressure Fuel Pipe Assembly)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	1000101757	1	High-pressure Fuel Pipe Assembly
2	1000101758	1	High-pressure Fuel Pipe Assembly
3	612630080058	1	Pipe Clamp
共轨管结合组(Common Rail Group)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	612630080038	1	Common Rail
2	9000001445	3	Hexagon Flange Bolt
共轨管(Common Rail)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	612600081585	1	Rail Pressure Sensor
2	612630080306	1	Safety Valve
进气管结合组(Intake Manifold Group)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	9000000672	6	Hexagon Flange Bolt
2	90011420020	6	Hexagon Flange Bolt
3	90013550009	1	Inner Hexagon Socket Head Cap Screw
4	612630120004	1	Boost Pressure and Temperature Sensor
5	1003586832	1	Heater
6	1001155173	2	Gasket
7	612630120012	1	Intake Connecting Pipe
8	90003813470	4	Double End Stud
9	90003888451	4	Hexagon Nut
10	612630120423	1	Intake Manifold Assembly
11	612600116551	6	Intake Manifold Gasket
进气管总成(Intake Manifold Assembly)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	612650120014	1	Intake Manifold
2	612600110456	1	Gasket
3	612600110712	1	Intake Cover
4	90003931102	3	Spring Washer
5	90003802424	3	Hexagon Head Bolt
增压器结合组(Turbocharger Group)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	1005341536	4	Dtflock Nut
2	1001104680	1	Turbocharger Gasket
3	1007918983	1	Turbocharger
4	1002177442	5	Exhaust Manifold Bolt
5	1008149014	1	Turbocharger Heat Shield
6	1007927877	2	Double End Stud
7	1002987265	2	Double End Stud
增压器润滑油管结合组(Turbocharger Oil Pipe Group)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	9000000185	2	Hexagon Flange Bolt
2	1012321295	1	Turbocharger Oil Pipe Assembly
3	1001335155	1	Pipe Clamp Assembly
4	1001335589	1	Pipe Clamp Assembly
5	9000000203	1	Hexagon Flange Bolt
6	612600115573	1	Turbocharger Oil Pipe Gasket
7	1006073288	1	Turbocharger Oil Pipe Gasket
8	1002516533	1	Turbocharger Oil Pipe Assembly
9	188250083	2	Washer
10	61460070014	2	Bolt
11	1000583648	1	Bale
12	1001063349	2	Assembled Sealing Washer
13	610800190497	1	Bolt
增压器压气机出气管结合组(Turbocharger Compressor Air-outlet Pipe Group)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	1002627098	1	Clamp
2	90017510071	1	O-ring
3	1002608152	1	Compressor Air Pipe
排气管结合组(Exhaust Manifold Group)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	1001739994	15	Hexagon Flange Bolt
2	1014854000	15	Sleeve
3	1001432054	6	Exhaust Manifold Bolt
4	1003144560	6	Sleeve
5	1010031039	1	Exhaust Manifold Heat Shield
6	1009775845	1	Exhaust Manifold
7	1009931855	6	Exhasut Manifold Gasket
8	612630110024	4	Exhaust Pipe Sealing Ring
9	1009629409	1	Exhaust Manifold
10	612630111012	3	Exhaust Manifold Bolt
11	1006940597	3	Sleeve
12	1003406085	2	Exhaust Manifold Bolt
空压机结合组(Air essorCompr Group)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	1002267731	1	Air Compressor Water Pipe
2	612639000022	4	Nut
3	1000886100	4	Ferrule
4	1000879941S	4	Ferrule Straight Thread Elbow-body
5	1013791854	1	Air Compressor Assembly
6	612639000039	1	O-ring
7	90013550004S	2	Inner Hexagon Socket Head Cap Screw
8	90003862532S	1	Inner Hexagon Socket Head Cap Screw
9	1012575774	1	Air Compressor Oil Pipe Assembly
10	1013675225	1	Air Compressor Bracket
11	9000000734	1	Hexagon Flange Bolt
12	1002653489	1	Air Compressor Water Pipe
13	90011400008	1	Hexagon Flange Bolt
14	612600130012	1	Hexagon Thin Nut
15	1002274218	1	Pipe Joint
16	9000002546	2	Hexagon Flange Bolt
空压机总成(Air essorCompr Assembly)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	1002262738	1	Air Compressor Gear
2	1013791855	1	Air Compressor
WP13系列发动机零件图册
空压机润滑油管总成(Air essor OilCompr Pipe Assembly)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	612600131018	2	Bolt
2	13057039	4	Assembled Sealing Washer
3	1012588739	1	Air Compressor Oil Pipe Assembly
液压泵结合组(Hydraulic Pump Group)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	9000000566	1	O-ring
2	1001458070	1	Hydraulic Pump Cover
3	90011430001	2	Hexagon Flange with Tooth Bolt
张紧轮及皮带结合组(Tensioner And Belt Group)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	1001103451	1	Idle Wheel
2	1001319530	1	Automatic Tensioner
3	9000000361S	1	Hexagon Flange Bolt
4	612630060011	1	Poly V Belt
5	1001744158	1	Poly V Belt
6	9000000739S	1	Inner Hexagon Socket Head Cap Screw
7	1000694241	1	Automatic Tensioner
起动机结合组(Starter Motor Group)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	90003813527	3	Double End Stud
2	1010301602	1	Starter Motor
3	612600013602	3	Hexagon Flange Nut
发动机支架结合组(Engine Bracket Group)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	1001356289	2	Engine Bracket
2	9000000490	4	Hexagon Flange Bolt
3	9000000491	4	Hexagon Flange Bolt
零件箱结合组(Parts Kit Group)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	612600082773	1	Pipe Joint
2	13023362	2	Assembled Sealing Washer
3	90003931122	12	Spring Washer
4	90003871305	12	Hexagon Nut
5	01119250	1	Bolt
6	90003813133	12	Double End Stud
7	90011620013	12	Double End Stud
电控单元结合组(Electronic Control Unit Group)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	1000986159	1	ECU Bracket
2	90011400043	2	Hexagon Flange Bolt
3	612650080075	1	Electronic Control Unit
4	90011400015	2	Hexagon Flange Bolt
5	1001788294	2	Back-up Block
6	1001732515	4	Plain Washer
7	9000000564	2	Hexagon Flange Bolt
电控系统线束结合组(Electronic Control HarnessSystem Group)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	90003862419S	2	Inner Hexagon Socket Head Cap Screw
2	90003931102	2	Spring Washer
3	612600081630	1	Pipe Clamp Assembly
4	612600081629	1	Pipe Clamp Assembly
5	90011350004	1	Hexagon Head Bolt
6	612600081628	3	Pipe Clamp Assembly
7	612600080949	2	Pipe Clamp Assembly
8	9000000112	2	Hexagon Flange Bolt
9	9000000068	4	Hexagon Flange Bolt
10	612630080675	4	Harness Bracket
11	90003862327S	6	Inner Hexagon Socket Head Cap Screw
12	1017274305	1	Engine Harness
13	90013050006S	6	Inner Hexagon Socket Head Cap Screw
14	612600083339	1	Harness Bracket
发电机结合组(Alternator Group)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	612630060040	1	Nut
2	1000750099	1	Alternator
3	90011350082	1	Hexagon Head Bolt
4	9000000045	1	Hexagon Flange Bolt
发电机支架结合组(Alternator Bracket Group)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	612630060041	2	Plastic Insert
2	1001062926	1	Alternator Bracket
3	90011430011	2	Hexagon Flange with Tooth Bolt
4	612600061712	1	Hexagon Flange with Tooth Bolt
5	90011430030	1	Hexagon Flange with Tooth Bolt
包装箱底盘零件结合组(Packing Box Chassis Parts Group)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	1003587843	1	Fuel System Protector
燃油水寒宝(Fuel System Protector)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	1000750104	1	Electrical Fuel Supply Pump Assembly
2	1000053558	2	Fuel Coarse Filter Element
3	612600081327	2	Seal Ring
4	612600083329	1	Water Cup Assembly
5	1003600426	1	Electrical Fuel Supply Pump Controller
6	610800080797	1	Water Cup Assembly
后排气歧管结合组(Rear Exhaust Manifold Group)
图序号 Pos.	件号 Part Number	数量 Qty.	Part Name
1	330209000186	2	Exhaust Manifold Bolt
2	1009253782	1	Bracket
3	1003869533	3	Hexagon Flange Bolt
4	1001498744	1	Clamp
5	1010036624	1	Gasket
6	1009995235	1	Exhaust Connecting Pipe
7	1009253817	1	Bracket
8	1003712640	2	Bolt
9	9000000174	2	Hexagon Flange Bolt
10	1001489669	1	Clamp
11	X6231.633W	2	Exhaust Manifold Bolt
