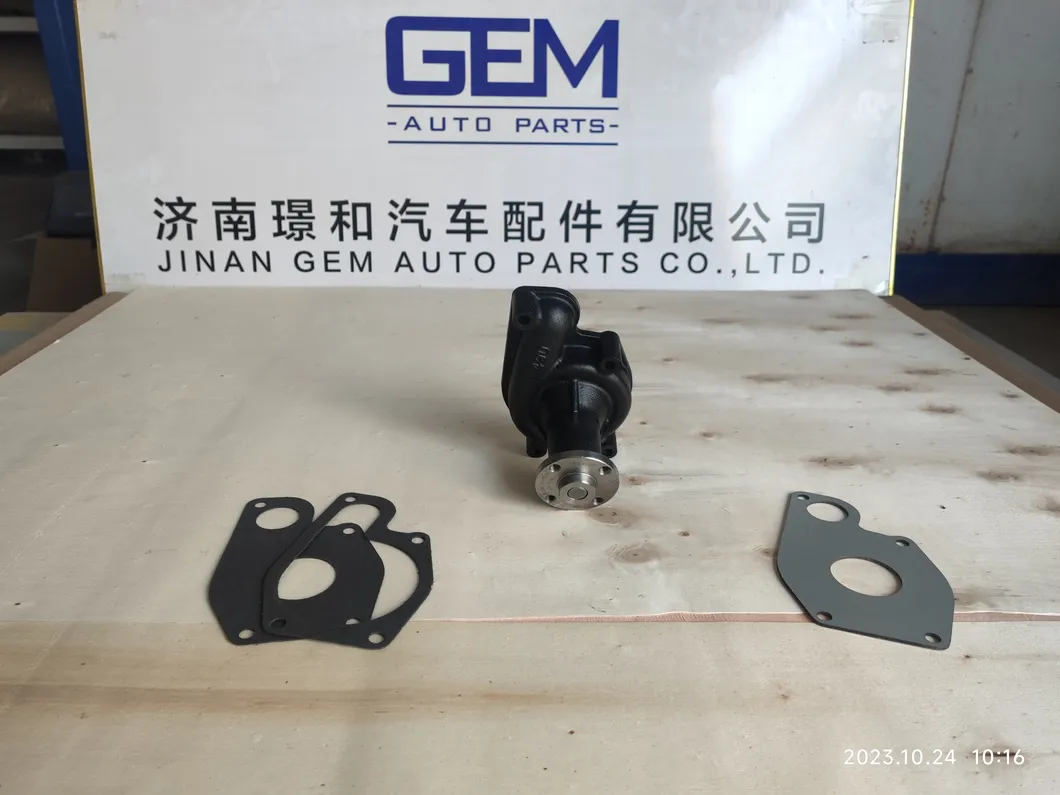

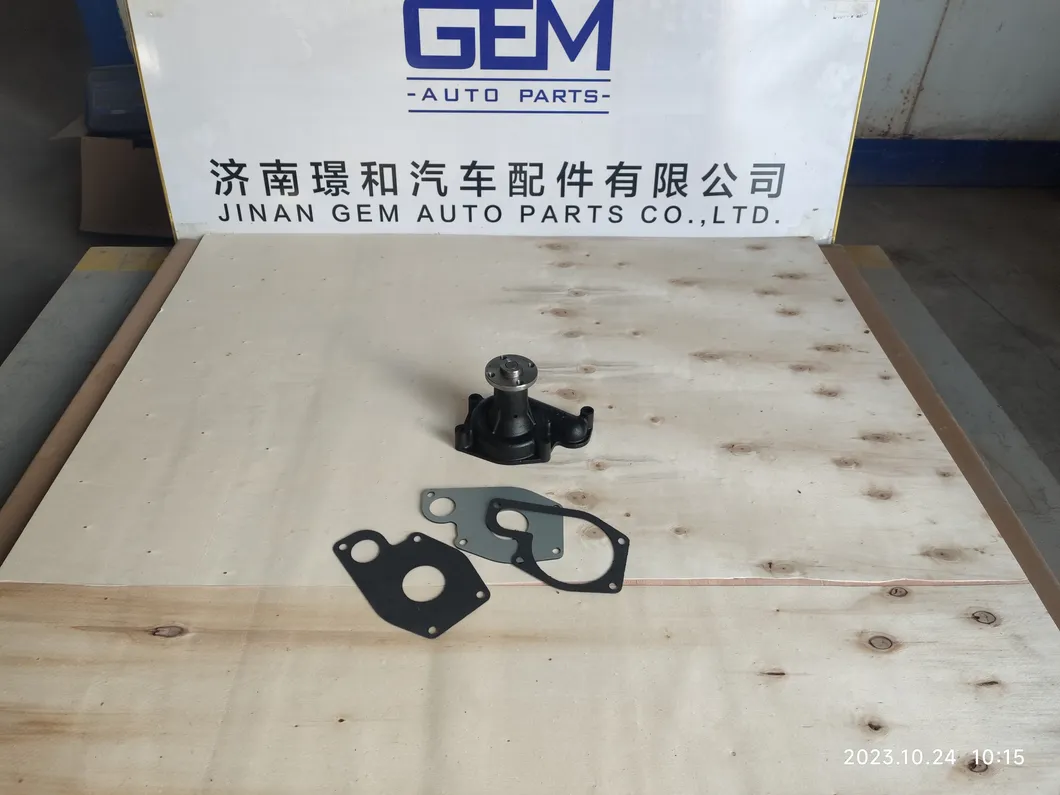

490b-42000 Water Pump for Zhejiang Xinchang Xinchai 490 490b C490bpg A490 E490bpg A498bt1 Engine Parts

Customization:	Available
After-sales Service:	Online Service
Warranty:	Online Service

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

490b-42000

Standard

Product Name

Water Pump

Quality

Original

Package

Standard Export Package

Transport Package

Wooden Box

Specification

20x30x20cm

Trademark

Xinchai

Origin

China

HS Code

8413309000

Production Capacity

1000

Packaging & Delivery

Package Size

20.00cm * 30.00cm * 20.00cm

Package Gross Weight

2.500kg

Product Description

NO.	Part no.	Part name	NO.	Part no.	Part name
1	GB/T5782-2000	Bolt M8x30	1	490B-31203	Pin
2	GB/T859-1987	Washer 8	2	490B-31001	Oil pump driving gear
3	GB/T849-1987	Washer 8	3	490B-31004	Oil pumnp housing
4	GB/T5782-2000	Bolt M8x25	4	GB/T97·1-2002	Washer 8
5	GB1192-2000	Pin B8x20	5	GB/T93-1987	Spring washer 8
6	GB/T5782-2000	Bolt M8x70	6	GB/T5785-2000	Bolt M8 x30
7	490BPG-160001	Cover	7	GB/T5783-2000	Bolt M8 x20
8	490BPG-160002	Casket	8	490B-33000	Piping assembly
9	490BPG-82014	Adjusting screw	9	490B-33005	Gasket
10	GB/T6171-2000	Nut M8x1	10	GB/T6170-2000	Nut M8
11	490BPG-82008	Bearing cover	11	GB/T5782-2000	Stud M8
12	490BPG-82009	Gasket	12	490B-31100A	Screen filter
13	490BPG-82001	End plate	13	490B-31006	Oil filter gasket
14	GB/T297-1994	Bearing 30207	14	490B-31005	Cover,oil pump
15	GB/T5782-2000	Bolt M8x20	15	GB/T308-1989	Steel ball 10
16	GB/T5782-2000	Bolt M8x40	16	490B-31003	Spring
17	490BPG-82003	Washer	17	490B-31002	Screw
18	GB/T5782-2000	Bolt M8x60	18	GB/T6171-2000	Nut M14x1.5
19	GB/T5782-2000	Bolt M8x15	19	GB/T6173-2000	Nut M14x1.5
20	490BPG-02100	Oil pipe	20	490B-31007	Cover,oil pump gasket
21	490B-02012-1	End plate	21	490B-31202	Inner rotor
22	490BPG-82007	Hydraulic pump gear	22	490B-31008	Outer rotor
23	GB/T5782-2000	Bolt M8x50	23	490B-31201	shaft of oil pump
24	490BPG-82006	Snap plate	1	GB/T5782-2000	Bolt M8x70
25	490BPG-82004	Bridge gear	2	GB/T93-1987	Spring washer 8
26	GB/T276-1994	Bearing 6009	3	490B-41100-1	Fan
27	GB/T893·1-1986	Snap ring 75	4	490B-41003-3	Gasket
28	490BPG-82005	Gear shaft	5	490B-41002	Fan pulley
29	490BPG-82010	Gasket	6	490B-41001	Fan belt
30	490BPG-82011	Connecting plate	7	GB/T6178-2000	Nut M10
31	490BPG-82012	Gasket	8	GB/T93-1987	Spring washer 10
32	490BPG-82013	End cover	9	GB/T97:1-2002	Washer l0
33	GB21-76	Bolt M10x45	10	490B-42001	Fan pulley hub
34	GB/T859-1987	Washer 10	11	490B-42011	Snap ring 40
35	GB/T849-1987	Washer 10	12	GB/I278-1989	Bearing
36	490BPG-02003	Pump timing gear	13	490B-42003	Sleeve spacer
37	490BPG-02006	Timing idlc gear	14	GB/T1099-1979	Key 5x19
38	490B-02005	Bushing	15	490B-42002	Water pump shaft
39	490B-02004	Idle gear shaft	16	GB/T5782-2000	Bolt M8x70
40	490BPG-82002	Screw	17	GB/T97:1-2002	Washer 8
41	GB/T5782-2000	Bolt M12x45	18	490B-42004	Water pump housing
42	GB/T859-1987	Spring washer 12	19	GB1152-1989	Oil cup
43	490B-02011	End cover	20	490B-42005	Gasket
44	490BPG-02009	Camshaft timing gear	21	GB/T5782-2000	Bolt M8 x50
45	GB/T1096-1979	Key C12x63	22	490B-42011	Gasket
46	490BPG-02007	Crankshaft timing gear	23	490B-42006	Back plate
47	GB/T5782-2000	Bolt M8x45	24	490B-42008	Water pump impeller
48	490BPG-16003	Timing gear housing	25	490B-42009	Water seal
49	490BPG-16009-1	Gasket	1	490B-16011-1	Gasket
50	GB/T5782-2000	Bolt M8 x75	2	490B-21000	Fuel injection pump
51	490B-16008	Gaskct	3	GB/T29·1-1988	Bolt M6x25
52	490B-16004-1	Connecting flange	4	490B-23501	Clamp
53	495B-02105	Axle sleeve	5	490B-23502	Rubber gasket
NO.	Part no.	Part name	6	GB/T93-1987	Spring washer 6
1	A498B-11002	Rubber pad	7	GB/T6172-2000	Nut M6
2	A498B-11001-2	Cylinder head cover	8	A490B-22000	Fuel injector
3	490B-11013B	Cap gasket	9	A490B-25100-1	Injector leak-off pipe
4	A498B-11003	Rubber isolation bushing	10	A490B-23101	1st cylinder high pressure fuel tube
5	A498B-11004	Washer	11	A490B-23201	2nd cylinder highpressure fuel tube
6	C490BPG-11009-2	Nameplate	12	A490B-23301	3rd cylinder highpressure fuel tube
7	GB/T827-1986	Rivet 2x5	13	A490B-23401	4th cylinder highpressure fuel tube
8	GB/T923-1988	Nut M8	14	490B-25200	Fuel supply tube from fuel filter to injection pump
1	490B-32000B	Oil filter	15	490B-24000A	Fuel fulter
2	490B-53001-4	Adjusting lever for generator	16	GB/T97·1-2002	Washer 8
3	GB/T97·1-2002	Washer 8	17	GB/T93-1987	Spring washer 8
4	GB/T93-1987	Spring washer 8	18	GB/T5783-2000	Bolt M8 x30
5	GB/T5783-2000	Bolt M8 x 25	19	490B-25300	Fuel supply tube from supply pump to fuel filter

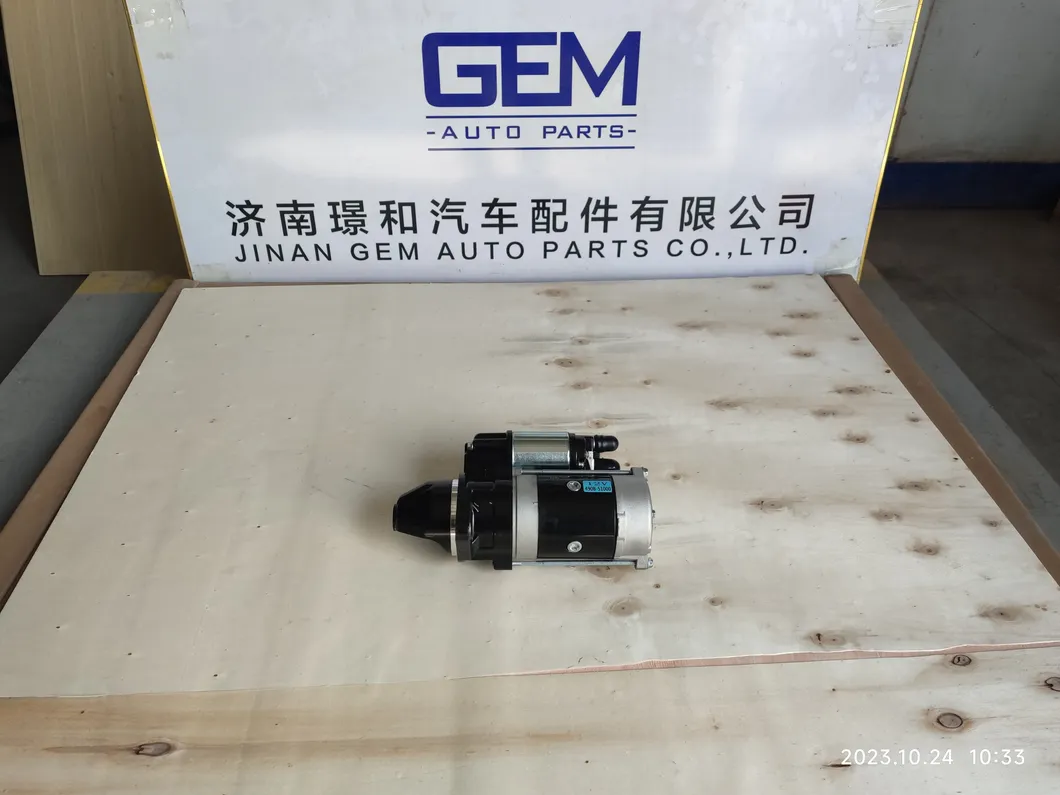

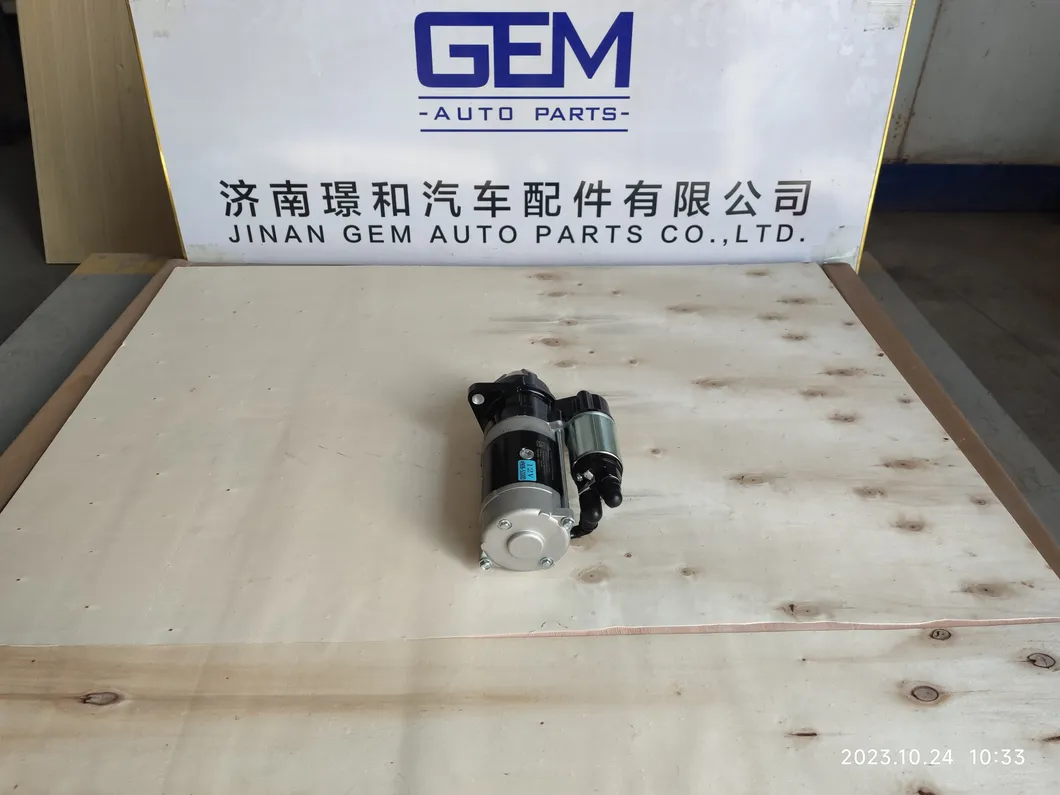

6	490B-51000	Starting motor	20	490B-25401-4	Fuel supply pump connector
7	GB/T5782-2000	Bolt M10 x 80	21	490B-25401-4	Sebific duct
8	490B-52000	Charging generator	22	498B-25001	Leakproof cap
9	GB/T97·1-2002	Washer 10	23	498B-25004	Clamp
10	GB/T93-1987	Spring washer 10	24	JB/T982-1977	Springle Washer
11	GB/T6170-2000	Nut 10
